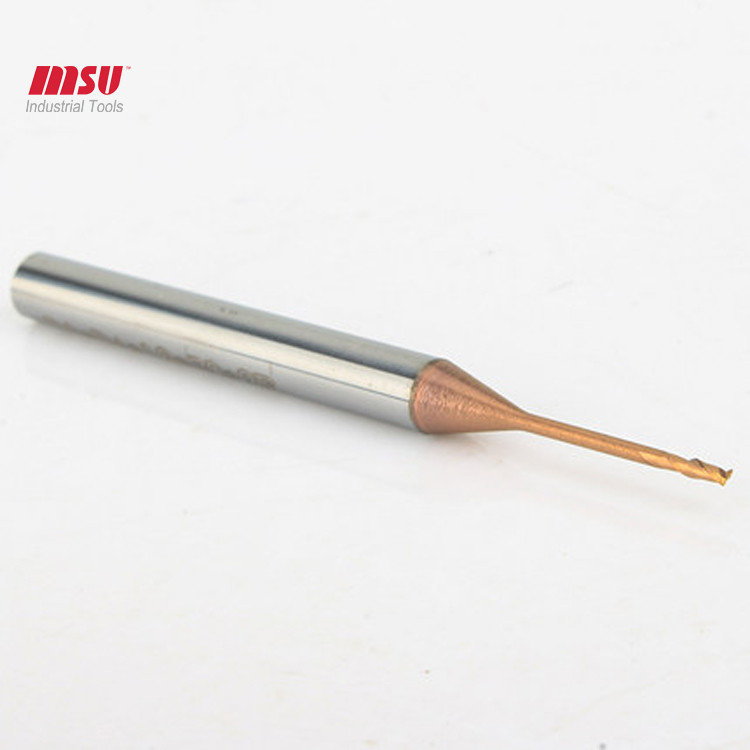

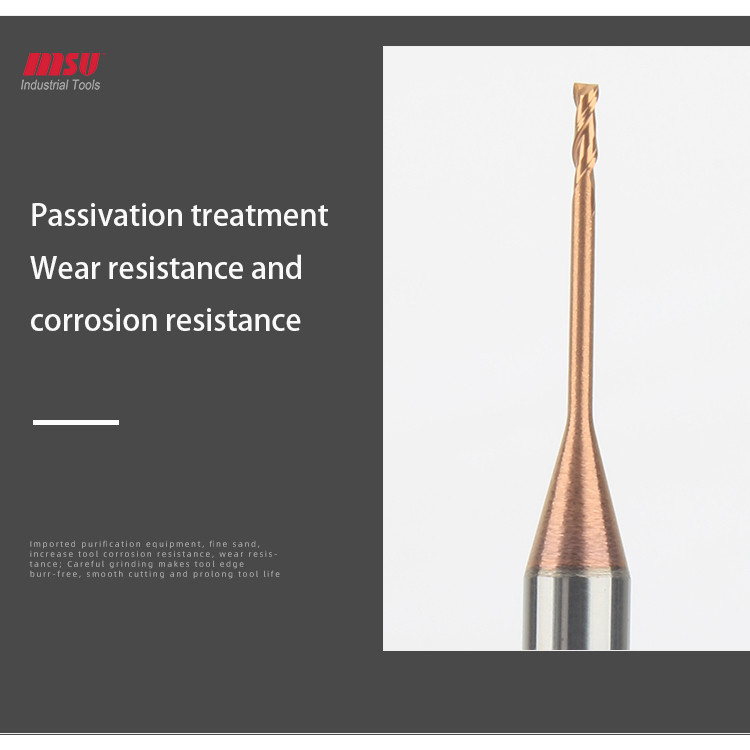

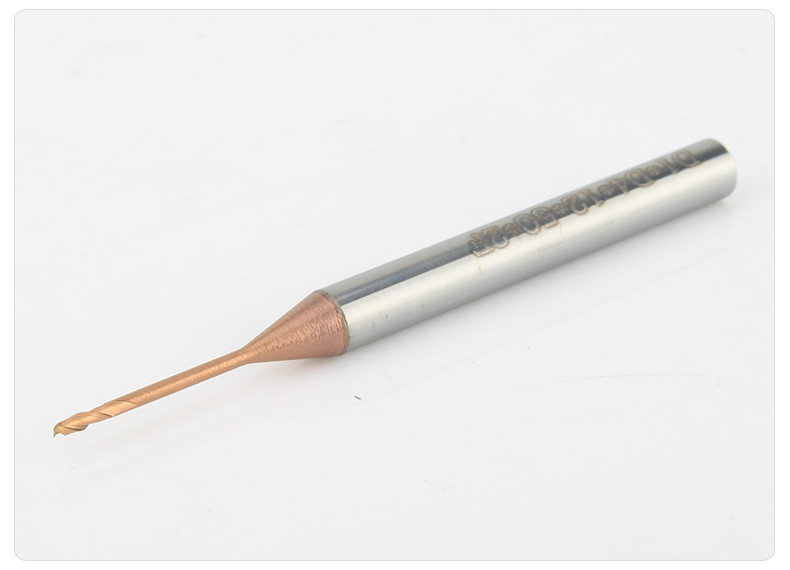

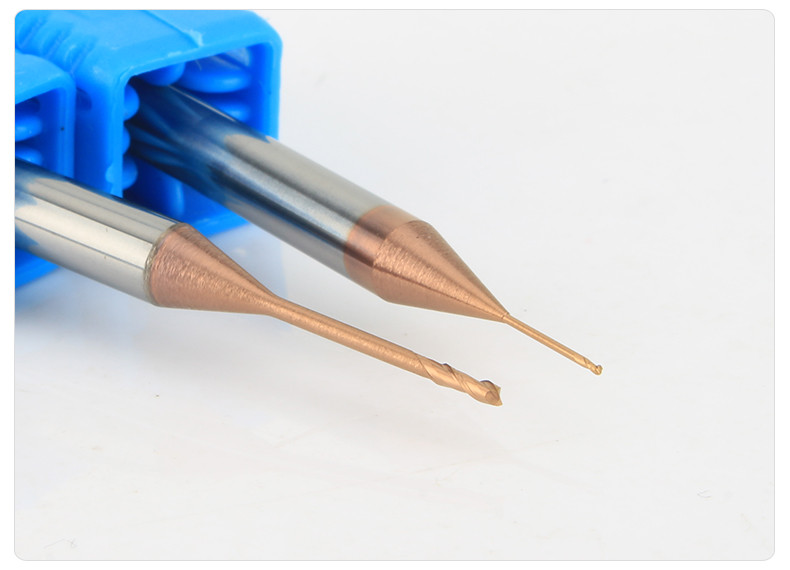

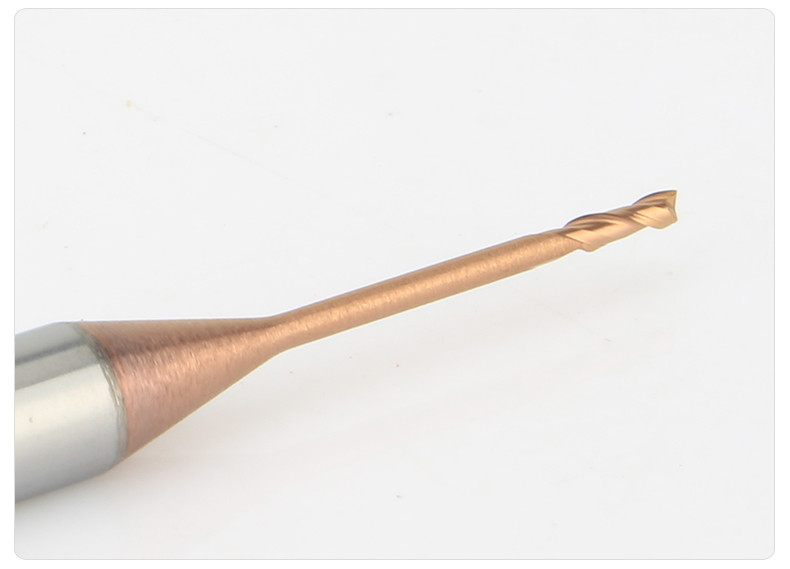

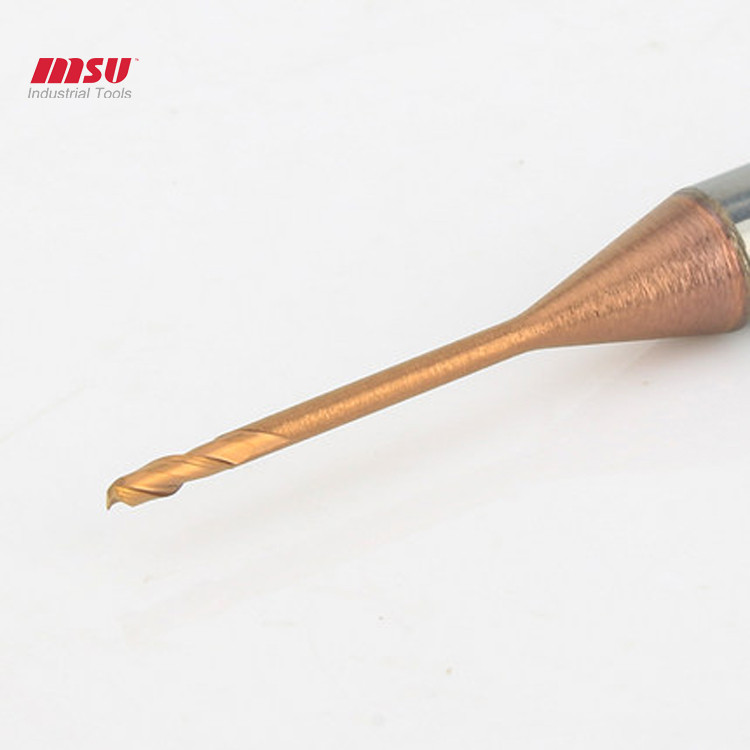

MSU 2 Flute Extral Long Reach Carbide Micro End Mill HRC 58 For Steel
MSU 2 Flute  Extral Long Reach Carbide Micro End Mill HRC 58 For Steel
MSU 2 Flute  Extral Long Reach Carbide Micro End Mill HRC 58 For Steel
MSU 2 Flute  Extral Long Reach Carbide Micro End Mill HRC 58 For Steel
MSU 2 Flute  Extral Long Reach Carbide Micro End Mill HRC 58 For Steel
MSU 2 Flute  Extral Long Reach Carbide Micro End Mill HRC 58 For Steel
Model
D1mm-20mm

Item specifics

Material
Solid Carbide
Internal Cooling
Without
No of Cutting Flute
2 Flutes
Type
Flattened
Coating
TiSin
Cutting Direction
Right - Hand
Helix Angle
35°
Precision
±0.01
Workpiece
Carbon Steel/Alloy Steel/Pre-hardened steel
Application
Side/Profile/Slot
Cutting Diameter
0.2mm- 0.9mm
Full Length
50mm/75mm/100mm/150mm

Product review

Description

Description
MSU 2 Flute  Extral Long Reach  Carbide Micro End Mill HRC 58 For Steel
Hardness
HRC58
Coating
TiSin
Helix Angle
35°
Workpiece
Hardened Steel, Stainless Steel, Aluminium
Application
Side Milling and Face Milling/Slotting

Features
1. Micro End Mill Cutter ,High Precision Machining
2. High Performance For Hard Materials- Cutter is made by Micro Grain Carbide that is very tough, Wear resistance, high cutting performance.
3. TiSin Coating- Lubricate the end mill for stability at high temperature ans superior wear resistance at high cutting speed.
4.Great Performance at a competitive price.

All End Mills are made by 5 Axis CNC machines such as ANCA/Walter, the end mills come to be high precision, long working life, high efficiency.
