DLC Coating Square End Mill 3 Flute For Aluminium Cutters
DLC Coating Square End Mill 3 Flute For Aluminium Cutters
DLC Coating Square End Mill 3 Flute For Aluminium Cutters
DLC Coating Square End Mill 3 Flute For Aluminium Cutters
DLC Coating Square End Mill 3 Flute For Aluminium Cutters
DLC Coating Square End Mill 3 Flute For Aluminium Cutters
Model
D1mm-20mm

Item specifics

Material
Solid Carbide
Internal Cooling
Without
No of Cutting Flute
3 Flutes
Type
Square
Coating
DLC
Cutting Direction
Right - Hand
Helix Angle
45°
Precision
±0.01
Workpiece
Aluminium/Alloy Aluminium/Copper
Application
Milling/Grooving/Contour/Profile/Engraving
Cutting Diameter
D4-20mm
Full Length
50mm/75mm/100mm/150mm

Product review

Description

2 Flute Micro Carbide End Mill
Description
DLC Coating Square End Mill 3 Flute For Aluminium Cutters
Hardness
HRC58
Coating
DLC Coating(diamond-like carbon)

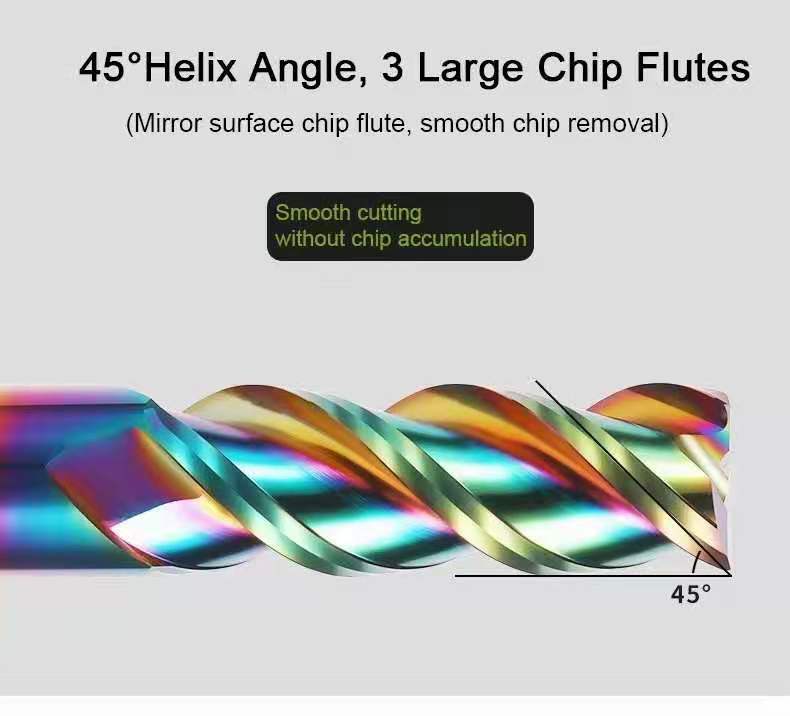

Helix Angle
45°
Workpiece
Alloy Aluminium
Application
Side Milling and Face Milling/Slotting

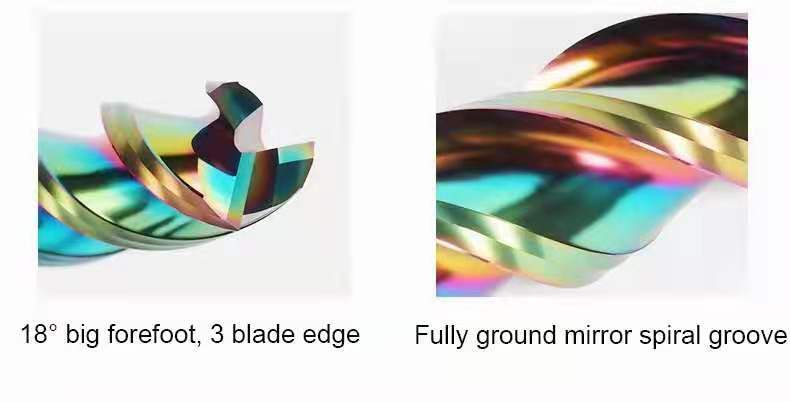

Features
1. Micro grain carbide material, tough and long life span.
2. DLC Coating,developed for applying a diamond-like carbon (DLC) coating on aluminum alloys to obtain sufficient adhesion strength and wear resistance.
 High Performance For Mirror surface milling.
3.  Suitable for Alloy Aluminium Machining, from semi-finishing to finishing.
4. Big Core Diameter, Easy Chip Removal.

All End Mills are made by 5 Axis CNC machines such as ANCA/Walter, the end mills come to be high precision, long working life, high efficiency.
